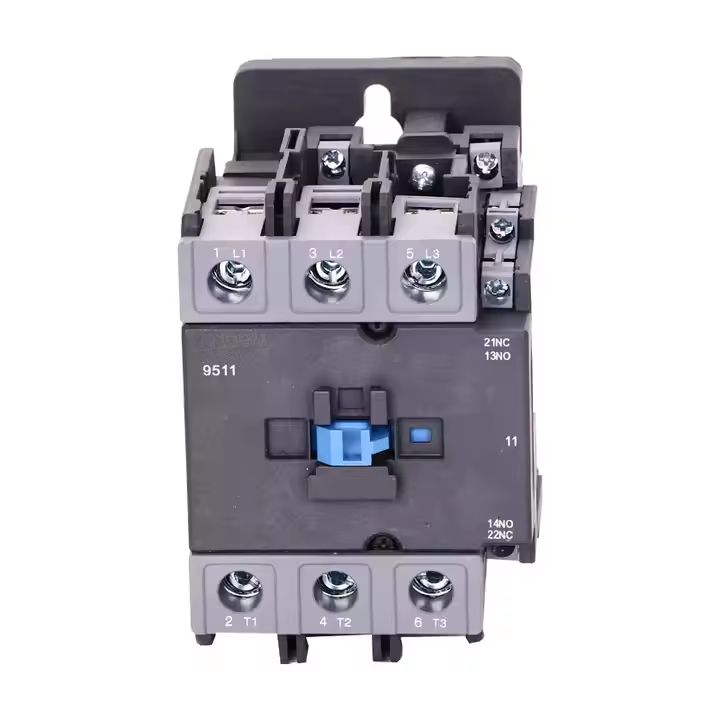

Product Description:
The product is available in a range of other operational currents, including 20A, 32A, 40A, 50A, 80A, and 125A. This means that users can choose the right size for their specific needs.
The 3 Pole AC Contactor also comes with 1NO+1NC contacts, allowing users to control the circuit in either direction. This feature is particularly useful in situations where the circuit needs to be switched on and off quickly.
Features:
- Product Name: 3 Pole AC Contactor
- Insulation Voltage: 690VAC
- Rated Current: 125A
- Mechanical Endurance: 3600/h
- Number of Auxiliary Contacts: 3
- Rated Insulation Voltage: 690VAC
- AC magnetic contactor
- 1NO+1NC
- 3 phase
Technical Parameters:
| Product Attribute | Value |
| Product Name | 3 Pole AC Contactor (LC1D) |
| Rated Current | 125A |
| Rated Operational Current | 60A |
| Rated Voltage | 220VAC |
| Rated Insulation Voltage | 690VAC |

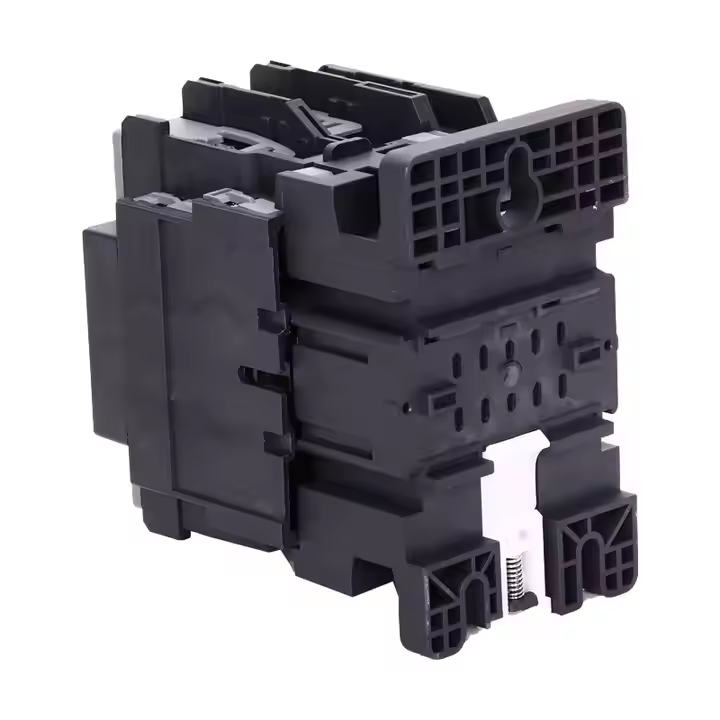

| Installation Method | Screw OR DIN RAIL |
| Number of Auxiliary Contacts | 3 |
| Rated Operational Voltage | 220VAC |
| Mechanical Endurance | 3600/h |
| Power Frequency | 50/60Hz |
| Protection Level | IP20 |
Applications:
They are compliant with IEC60947-4 standards and are rated for a rated insulation voltage of 690VAC and rated operational voltage of 220VAC. These contactors are suitable for use in power frequency of 50/60Hz and have a mechanical endurance of 3600/h.
They are commonly used in industrial and commercial applications where large electrical loads need to be switched on and off frequently. These contactors are suitable for use in protection level IP20 environments and are designed to provide reliable operation in harsh environments.
FAQ:
Q1: What is the brand name of the 3 Pole AC Contactor?
A1: The brand name of our 3 Pole AC Contactor is YOKG or OEM.
Q2: What are the available model numbers for the 3 Pole AC Contactor?
A2: The available model numbers for the 3 Pole AC Contactor are SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95.
Q3: Where is the 3 Pole AC Contactor manufactured?
A3: The 3 Pole AC Contactor is manufactured in Zhejiang, China.
Q4: What is the minimum order quantity for the 3 Pole AC Contactor?
A4: The minimum order quantity for the 3 Pole AC Contactor is 200.
Q5: What are the available payment terms and delivery time for the 3 Pole AC Contactor?
A5: The available payment terms for the 3 Pole AC Contactor are T/T and L/C. The delivery time for the 3 Pole AC Contactor is 10 days.
