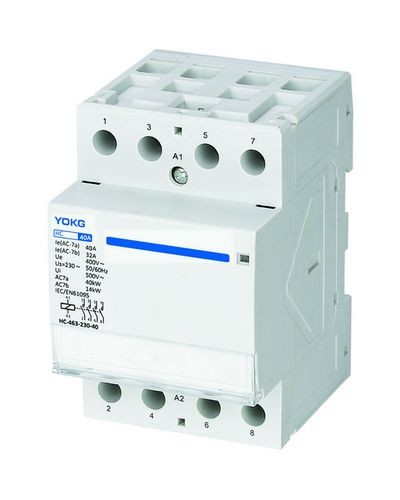

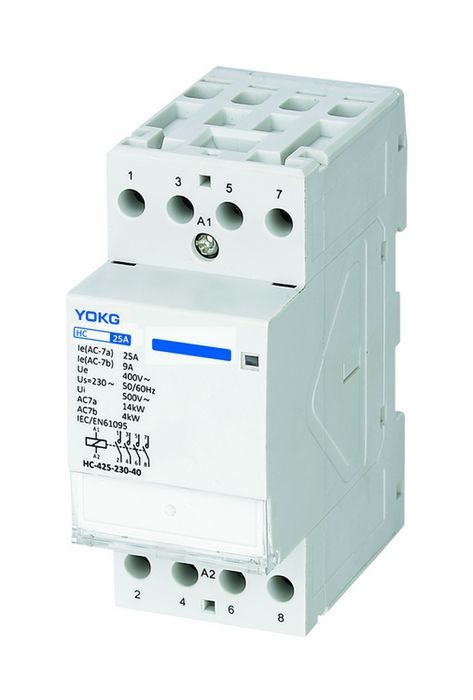

Product Description:
The contactor has a mechanical life of 100,0000 times, which means it is designed to last for many years. It is suitable for use with AC 220V, 110V, and 24V, making it versatile and compatible with a wide range of electrical systems.
The contactor features 4 poles or 2 poles, depending on the specific needs of the user. This allows for greater flexibility and customization when selecting a contactor for a specific project or application.
The contactor is designed for use with Din rail, making it easy to install and integrate into existing electrical systems. It is a great choice for households and businesses looking for a reliable and efficient contactor that can be easily installed and maintained.
Features:
- Product Name: Household AC Contactor
- Rated Operating Voltage: AC 220V, AC 24V, AC 48V, AC 110V
- Rated Current: 100A, 25A, 40A, 63A
- Number of Poles: 4 Poles, 2 Poles
- Mechanical Life: 100,0000 Times
- Frequency: 50/60Hz
- Mounting Type: Din rail
- Low Voltage: Yes
Technical Parameters:
| Product Name: | Household AC Contactor |
| Rated Operational Power: | 2.2KW |
| Rated Current: | 100A,25A,40A,63A |
| Number of Poles: | 4 Poles, 2 Poles |
| Mechanical Life: | 100,0000 Times |
| Ambient Temperature: | -25℃~+40℃ |
| Rated Operating Voltage: | 220V,24V,48V,110V |
| Rated Voltage: | 220V,110V,24V |
| Rated Insulation Voltage: | 660V |
| Rated Impulse Withstand Voltage: | 4KV |
Applications:
The Household AC Contactor is designed to be used in various occasions and scenarios. It is ideal for households, commercial buildings, and industrial settings.
Whether you are renovating your home, building a new commercial structure, or upgrading your industrial facility, the Household AC Contactor is a product that you can rely on. Its frequency of 50/60Hz and rated operating voltage of 220V, 24V, 48V, and 110V make it compatible with a wide range of electrical systems and equipment.
