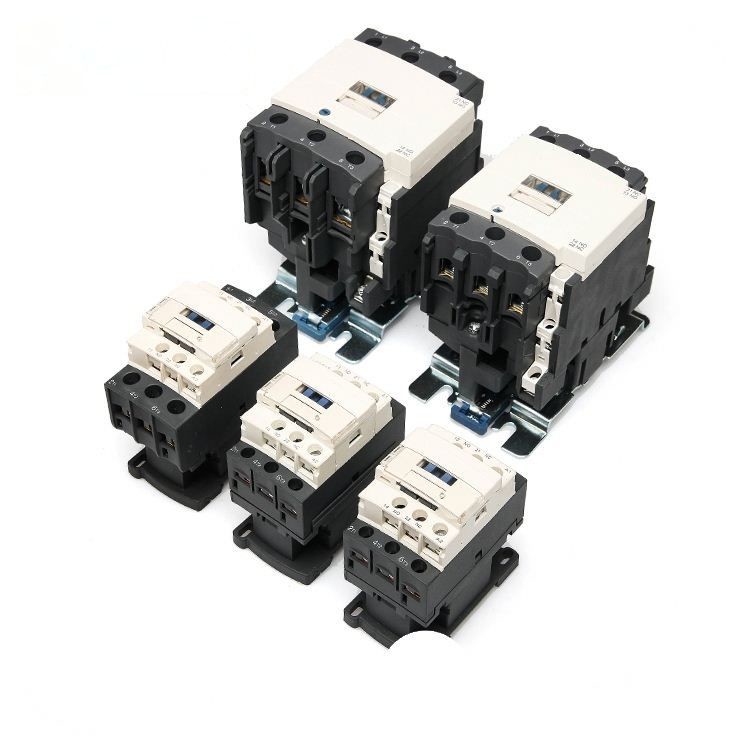

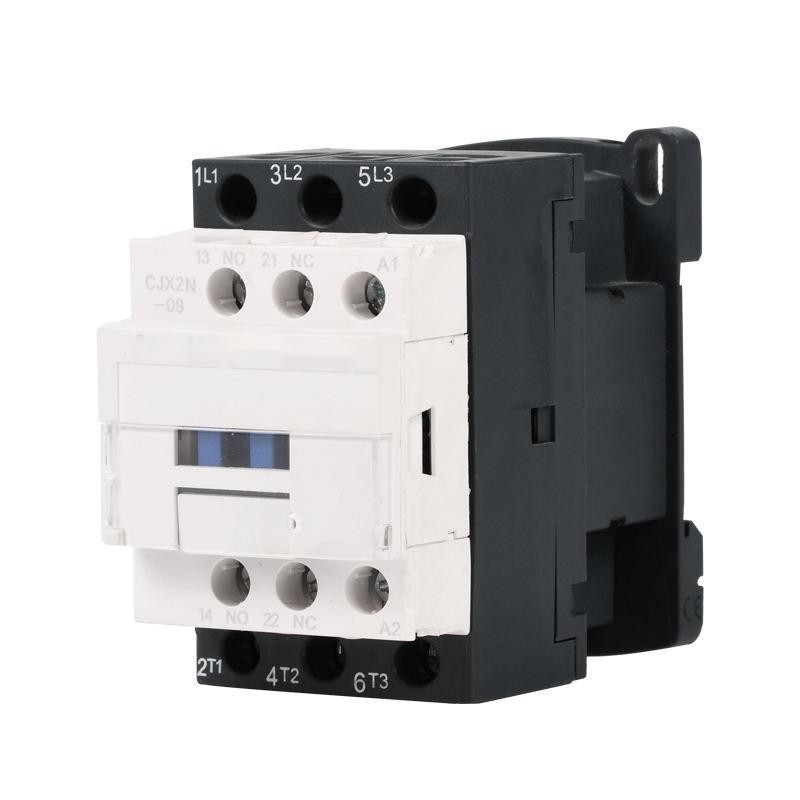

Product Description:
With a wide range of rated currents available from 20A to 125A, this contactor offers the right fit for your application needs. The 3 Pole AC Contactor is designed to ensure reliable and efficient operation, making it a reliable choice for your electrical control needs.
Features:
- Product Name: 3 Pole AC Contactor
- Protection Level: IP20
- Rated Current: 20A, 32A, 40A, 50A, 60A, 80A, 125A
- Number of Auxiliary Contacts: 3
- Mechanical Endurance: 3600/h
- Rated Operational Voltage: 220VAC
- Type: AC magnetic contactor
- Phase: 3 phase
Technical Parameters:
| Product Name | 3 Pole AC Contactor |
| Rated Operational Current | 60A |
| Protection Level | IP20 |
| Number of Auxiliary Contacts | 3 |
| Rated Insulation Voltage | 690VAC |
| Installation Method | Screw OR DIN RAIL |
| Rated Operational Voltage | 220VAC |
| Insulation Voltage | 690VAC |
| Rated Current | 20A, 32A, 40A, 50A, 60A, 80A, 125A |
| Number of Poles | 3 |
| Mechanical Endurance | 3600/h |
| Standards | IEC60947-4 |
| Contact Configuration | 1NO+1NC |
| Product Type | AC magnetic contactor |
Applications:
The contactors are suitable for use in motor control, heating and ventilation, air conditioning, and lighting applications. They are ideal for use in residential, commercial, and industrial settings.
With a 1NO+1NC configuration, these contactors can handle a wide range of voltages and currents. They have a rated insulation voltage of 690VAC and a mechanical endurance of 3600/h. The contactors have a protection level of IP20, making them safe to use in a variety of environments.
The contactors are available with either rail or screw mounting options, making them easy to install in a variety of situations. They also feature LC1D auxiliary contacts, which provide additional functionality and flexibility.
